STRUCTURES FOR ADCP

TECHNICAP manufacture on request, any structures in Composites materials, Stainless steel, Aluminum alloy or Titanium

Instrument bottom mount in PEHD (High Density Polyethylene), thickness 15mm with or without flotation.

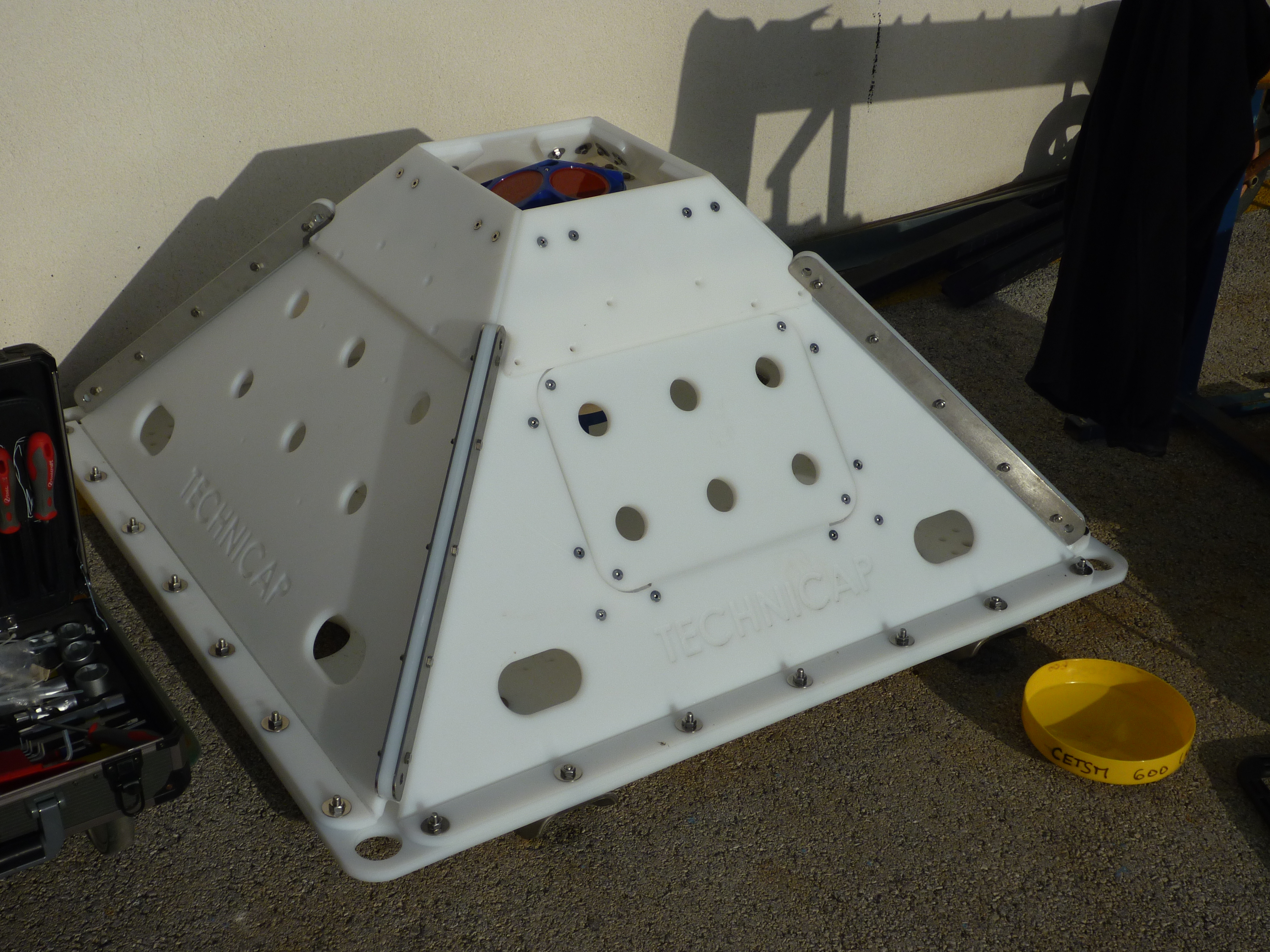

The structure is easy to dismantle and delivery in a wood transport box (and small toolbox with spare parts inside).

There is available space inside the structure.
The maintenance is easy.

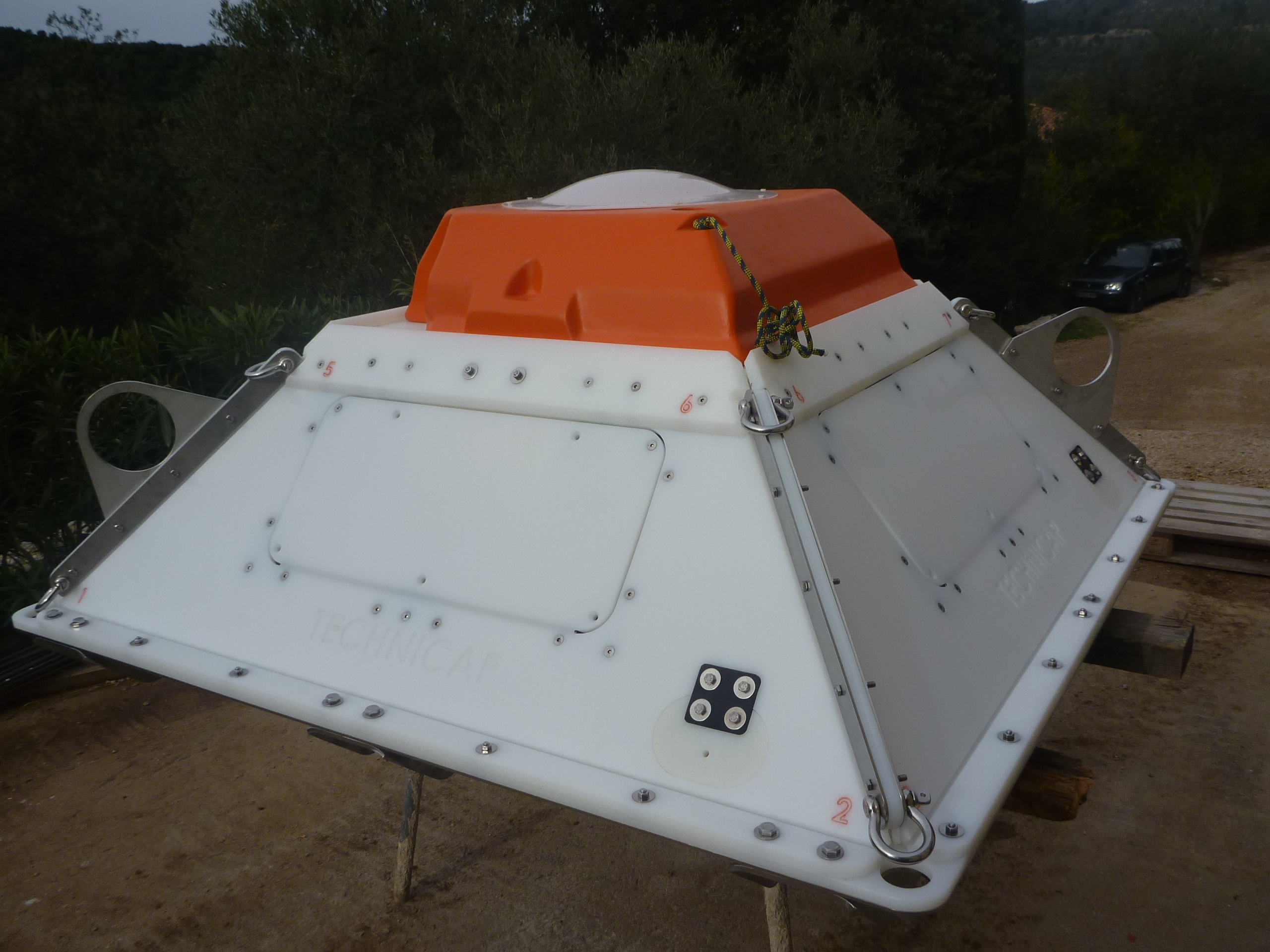

MODEL : TBM 1.36

MODEL : TBM 1.36

For TBM 1.36 (without flotation), the standard equipment is:

Technical data:

  • Double axis gimbal to keeps the ADCP vertical
  • Nonmagnetic ballast: 30kg
  • 8 Stainless steel shackles Ø14mm

Dimensions and weight:

  • External Dimensions: 1,36 x 1,36 x 0,70
  • Weight in air: 120kg + 30kg (ballast) = 150kg
  • Weight in water: 45kg

MODEL : TBM 1.76

MODEL : TBM 1.76

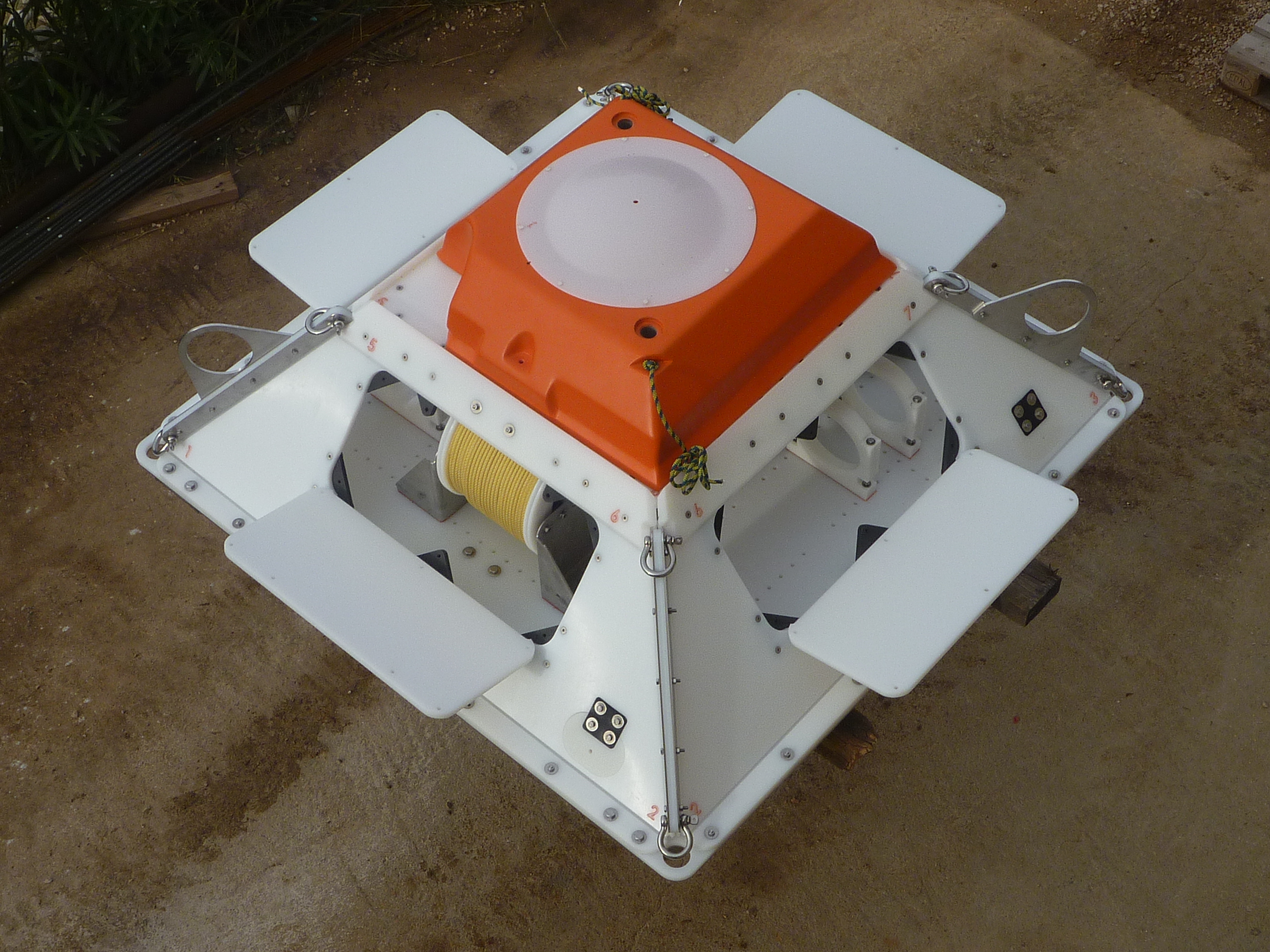

For TBM 1.76 (with flotation), the standard equipment is:

Technical data:

  • Double axis gimbal to keeps the ADCP vertical
  • 2 Pairs of Bridles for additional battery container
  • Fixation for acoustic release with remote head
  • Coil system with brake and 150m of rope, Ø 8mm
  • Nonmagnetic ballast: 100kg
  • 8 Stainless steel shackles Ø14mm

Dimensions and weight:

  • External Dimensions: 1,76 x 1,76 x 0,80
  • Weight in air: 185kg + 100kg (ballast) = 285kg
  • Weight in water: 57kg
  • Maximum using flotation depth: 120m

TBM FOR ADCP LONG RANGER 75

TRANSPORT BOX

CURRENT METER SUPPORT

CURRENT METER SUPPORT

STAINLESS STEEL STRUCTURE FOR ADCP WITH DIRECTIONAL BRIDLE

STAINLESS STEEL STRUCTURE FOR ADCP WITH DIRECTIONAL BRIDLE

DISMOUNTABLE STAINLESS STEEL STRUCTURE FOR ADCP WITH MANUAL DIRECTIONAL BRIDLE

DISMOUNTABLE STAINLESS STEEL STRUCTURE FOR ADCP WITH MANUAL DIRECTIONAL BRIDLE

STAINLESS STEEL STRUCTURE FOR ADCP

STAINLESS STEEL STRUCTURE FOR ADCP

STAINLESS STEEL STRUCTURE FOR ADCP : UNIVERSITE DE PERPIGNAN

STAINLESS STEEL STRUCTURE FOR ADCP : UNIVERSITE DE PERPIGNAN

TITANIUM STRUCTURE FOR ADCP

TITANIUM STRUCTURE FOR ADCP

STAINLESS STEEL STRUCTURE FOR 2 ADCP

On request



- Adding ballast according to the current

- Pairs of Bridles for other materials (CTD…)

- More using depth (only for TBM 1.76)

​- Support
